Hybrid Power Solution

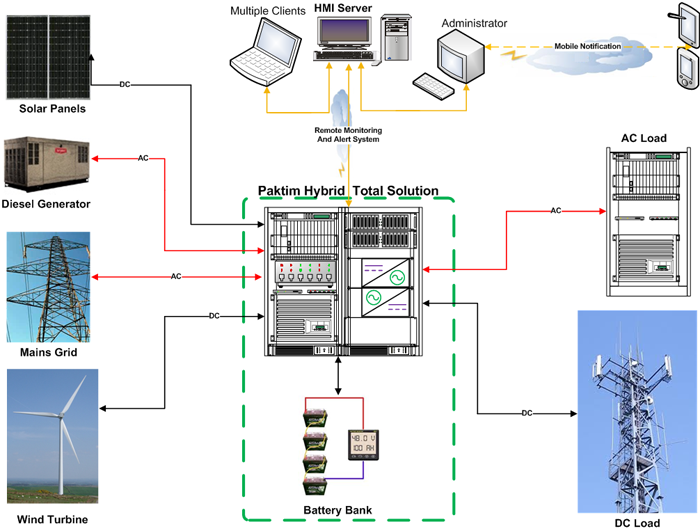

Paktim provides highly reliable and efficient Hybrid Remote Area Power Supply (RAPS) Solution by combining a diesel generator with solar panels or a wind turbine. Now this hybrid RAPS is widely used in telecoms base transceiver stations and television transmission towers. Paktim is promoting the use of hybrid power systems to Telecom operators, combining efficient renewable energy sources with reliable diesel generators. By reducing the consumption of diesel fuel and the costs of generator maintenance, the increased capital cost of solar panels and batteries is quickly repaid by the substantial savings in operating costs. That not only lowers phone bills and improves the competitive position of the operator, but also protects the environment and reduces carbon emissions.

Some of the advantages of our Hybrid Solution includes but are not limited to:

• More than 95% efficiency optimised for normal load level;
• Reduction in diesel consumption and refill frequency by up to 50%;
• Reduction in OPEX (operating expense);
• Reduction in maintenance and spare parts;
• Eliminates the use of standby diesel generator;
• Reduces emission of harmful CO2 and noise to the environment;
• Performance monitoring (web based) and fault alert (mobile text message).

Coming from the success of the Network Management system with our strategic partner, Paktim has developed a more robust Controller for the Hybrid RAPS System. The design of this control system is been is based on simple algorithms for the More complex Hybrid Total Solution.

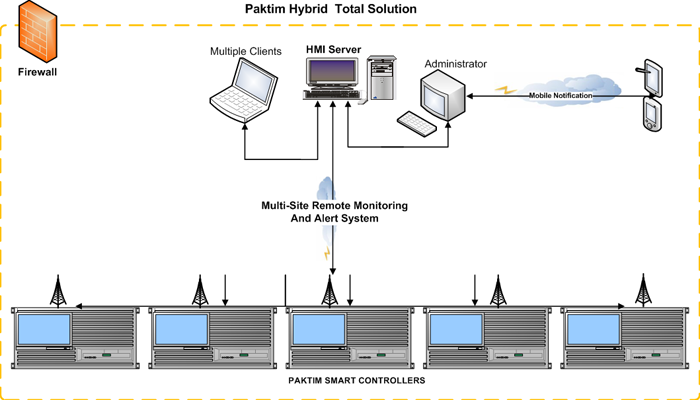

We have also developed a sophisticated but user-friendly remote monitoring system that allows the operator to view real-time data from cell sites across the entire national network. Data can be transmitted by GPRS, 3G or Wi-Fi and the operator is alerted to faults and low fuel level through the internet or by SMS. This ensures a prompt response to any problem and allows for the optimization of maintenance schedules. Comprehensive data is presented in a customized reporting format for performance analysis through our standard Data Logger.

Recent Project

Solar PV panels, wind turbines, diesel generators and batteries can be most effective when they work together in a hybrid power system. Renewable sources are cost-effective and environmentally friendly while a diesel generator is a reliable back-up power source. Our most recent Hybrid RAPS project was for a remote farm in Shetland, where Paktim designed and installed a hybrid solar/diesel power system to supply electricity to the farm. 40 solar PV panels (each 210Wp, for a total of 8.4kWp) powers the load and at the same time charges a 48V, 2,000Ah battery bank. In the event of absence of enough sunlight, a 15kVA diesel generator is standing by. The system guarantees a reliable power supply in such a remote location while greatly reducing the consumption of diesel fuel and the resulting emissions and noise.

Please contact us - Renewables Group to find out more.
